Queue in C

Queue is work on the principal of First-In-First-Out (FIFO), it means first entered item remove first. Queue have two end front and rear, from front you can insert element and from rear you can delete element.

queue

Real life example of Queue

A common example of queue is movie theater ticket counter, there first person who stand in front of ticket window take ticket first and remove from line and new person always stand in line from end.

real life example of queue in c

Single-Lane One-Way Road: First car go first

real life example of queue in c

Ticket Counter: First person get ticket first and go out first

Some other Real Life Examples of Queue are

  • Queue of processes in OS.
  • Queue of people at any service point such as ticketing etc.
  • Queue of packets in data communication.
  • Queue of air planes waiting for landing instructions.

Application of Queue Data Structure in C

Queues are used for any situation where you want to efficiently maintain a First-in-first out order on some entities. Transport and operations research where various entities are stored and held to be processed later i.e the queue performs the function of a buffer.

In a multitasking operating system, the CPU cannot run all jobs at once, so jobs must be batched up and then scheduled according to some policy. Again, a queue might be a suitable option in this case.

Operation on a queue

The basic operation that can be perform on queue are;

  • Insert an element in a queue.
  • Delete an element from the queue.

Insert an element in a queue.

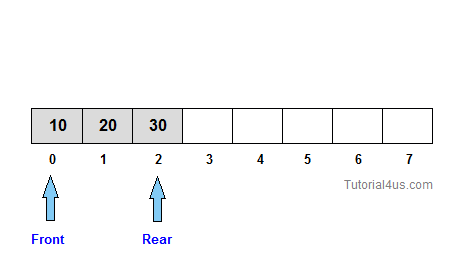

insert date in queue

In queue insert any element form Rear. If you insert new element in queue value of Rear will be increased by 1.

Insert element in queue


void insert()
{
int item;
printf("Element : ");
scanf("%d",&item);
if(front==(rear+1)%3)
{
printf("Queue is Full");
return;
}
if(front==-1)
{
rear=front=0;
}
else
{
rear=(rear+1)%3;
}
cque.cqueue[rear]=item;
printf("Successfully Insert");
}

Delete any element from the queue.

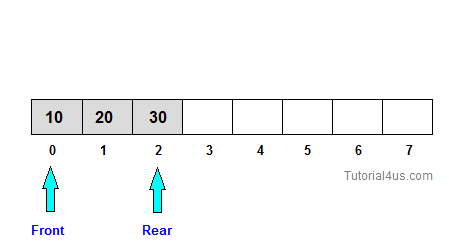

delete date in queue

In queue delete an element form Front. If you delete an element from queue value of Front will be increased by 1.

Delete element from queue


void del()
{
int num;
if(front==-1)
{
printf("Queue Empty");
return;
}
else
{
num=cque.cqueue[front];
printf("Deleted item : %d",num);
}
if(front==rear)
{
front=-1;
}
else
front=(front+1)%3;
}

Example of Queue


#include<stdio.h>
#include<conio.h>

void insert();
void del();
void display();

struct circ
{
int cqueue[5];
};

struct  circ cque;
int rear=0,front=-1;

void main()
{
while(1)
{
int num;
 clrscr();
printf("1.Insertion\n2.Deletion\n3.Display\n0.Exit\n");
printf("\n\nSelect Option : ");
scanf("%d",&num);
switch(num)
{
case 1:
insert();
break;
case 2:
del();
break;
case 3:
display();
break;
case 0:
exit(0);
break;
default:
printf("\n\n Invalid Option ");
}
getch();
}
}

void insert()
{
int item;
printf("Element : ");
scanf("%d",&item);
if(front==(rear+1)%3)
{
printf("Queue is Full");
return;
}
if(front==-1)
{
rear=front=0;
}
else
{
rear=(rear+1)%3;
}
cque.cqueue[rear]=item;
printf("Successfully Insert");
}

void del()
{
int num;
if(front==-1)
{
printf("Queue Empty");
return;
}
else
{
num=cque.cqueue[front];
printf("Deleted item : %d",num);
}
if(front==rear)
{
front=-1;
}
else
front=(front+1)%3;
}

void display()
{
int i;
if(front==-1)
{
printf("Queue Empty");
return;
}
else
{
printf("\n\nItems : ");
for(i=front;i<=rear;i++)
{
printf("   %d",cque.cqueue[i]);
}
}
}

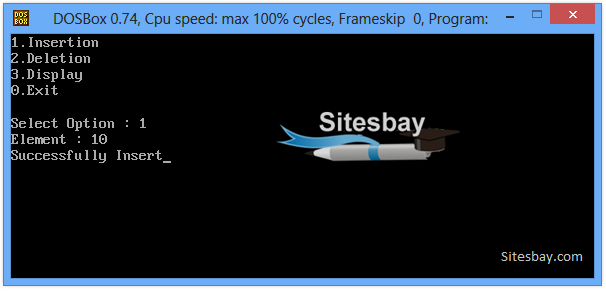

queue output
