Difference Between Hub, Switch and Router

Hus is use to connect device in the same network Switch is use to connect devices in the same network Router is use to connect two or more different network. Only one device can send data at a time, In Switch Multiple devices can send data at the same time, In Router Multiple devices can send data at the same time.

Hubs

A hub is the least expensive, least intelligent, and least complicated of the three. Its job is very simple: anything that comes in one port is sent out to the others.

what is router

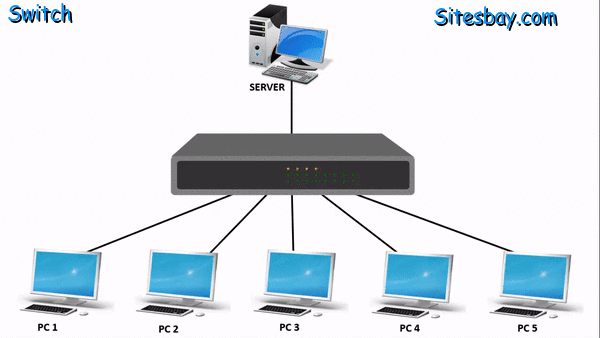

Switch

A switch does what a hub does, but more efficiently. By paying attention to the traffic that comes across it, it learns which computers are connected to which port.

what is router

Router

A router is the smartest and most complicated of hub and switch. Routers come in all shapes and sizes, from small, four-port broadband routers to large industrial-strength devices that drive the internet itself.

what is router

Difference Between Hub, Switch and Router

HubSwitchRouter
HUB work on Physical Layer of OSI ModelSwitch work on Data Link Layer of OSI ModelRouter work on Network Layer of OSI Model
HUB is Broadcast DeviceSwitch is Multicast DeviceRouter is a routing device use to create route for transmitting data packets
Hus is use to connect device in the same networkSwitch is use to connect devices in the same networkRouter is use to connect two or more different network.
Hub sends data in the form of binary bitsSwitch sends data in the form of framesRouter sends data in the form packets
Hub only works in half duplexSwitch works in full duplexRouter works in full duplex
Only one device can send data at a timeMultiple devices can send data at the same timeMultiple devices can send data at the same time
Hub does not store any mac address or IP addressSwitch store MAC AddressRouter stores IP address
Difference Between switch router and hub
